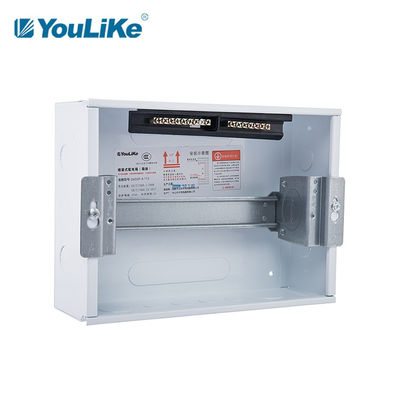

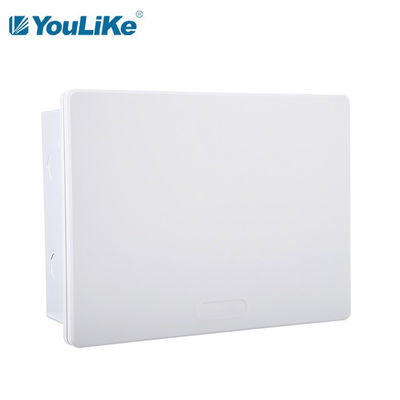

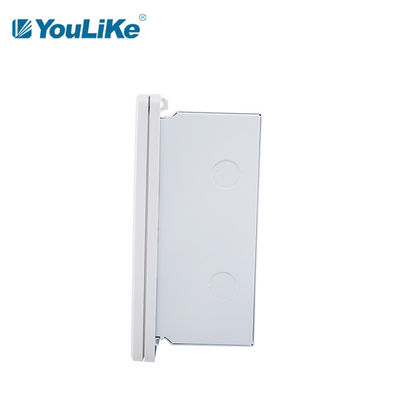

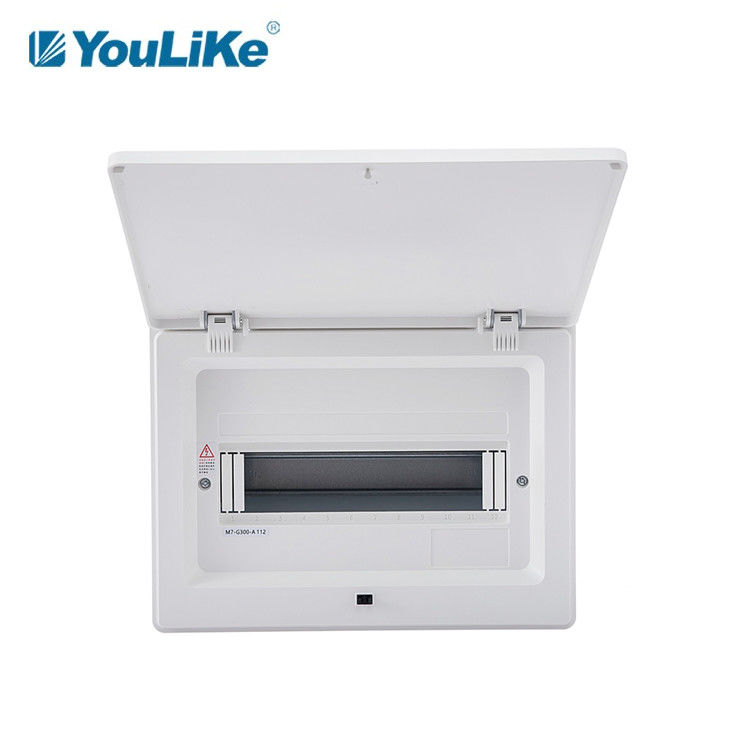

Home Electricity Power Coated Steel 18 Way Flush In Wall Amounting Mcb Distribution Box
Application
M7 series is used for indoor power distribution mainly for lighting control residential and commercial buildings.
1. Din rail to be galvanized steel, with horizontal & vertical adjustment funtion.
2. Brass terminals (1pcs earthing & 1pcs neutral) is with 57.5% composition.
3. Stainless earthing bolts with warning label.
4. Reinforced structure design to allow higher tensile strength of plastic cover.
5. Both golden color and white color available (golden color is with higher cost).
6. Double bending reinforcing edges of left and right box openings.
7. Integrated graphic design,clean and atmospheric appearance.
Safety Qualification Elements
1. Copper bar:smooth conduction, safe and reliable
2. Wiring :wiring specification, standard safety
3. Grounding:stainless steel, safe and reliable
4. Raw materials:brand new plastic, durable and beautiful
5. Movable door :not falling off, safe and beautiful
Company Profile
1. Founded in 2005, it specializes in the production, R & D and sales of indoor distribution box, multi-media box and power cabinet.
2. The product design takes safety as the core concept, and has obtained 33 design patents, 20 utility model patents and 2 invention patents.
3. It has served 1350 leading real estate companies and 1600 panel builder.
4. In 2015, the sales revenue will exceed 100 million, and the annual box sales volume will reach 3 million pieces.
5. After 16 years of development and customer support, it has also gained a certain reputation.
Specifications of M7 series, Flush
| Model |
Way |
Cover size |
Box size |
Terminals
|
Knockouts |
| L*H*T (mm) |
L*W*D*T(mm) |
size(mm) |
PE |
N |
one side qty |
| M7-A 112 |
12way |
316*240*22.5 |
292*210*90*1.0 |
6*10 |
8 |
7 |
6 |
| M7-A 115 |
15way |
370*260*22.5 |
346*220*90*1.0 |
6*10 |
8 |
9 |
7 |
| M7-A 118 |
18way |
424*260*22.5 |
400*220*90*1.0 |
6*10 |
11 |
10 |
9 |
| M5-A 121 |
21way |
478*260*22.5 |
454*220*90*1.0 |
6*10 |
11 |
10 |
10 |
| M7-A 232 |
32way |
376*405*23.5 |
354*380*90*1.0 |
6.4*12 |
16 |
15 |
7 |
| M7-A 242 |
42way |
466*405*23.5 |
444*380*90*1.0 |
6.4*12 |
18 |
17 |
10 |
Workshop Details Demonstration
Packing
| Model |
Carton size |
Volume/ctn |
Pcs/ctn |
Calculated weight(kgs/ctn) |
| mm |
m³ |
net weight |
gross weight |
| M7-A 112 |
640*345*525 |
0.1160 |
10 |
17.10 |
|
| M7-A 115 |
640*285*410 |
0.0748 |
5 |
9.25 |
|
| M7-A 118 |
640*285*465 |
0.0849 |
5 |
10.20 |
|
| M7-A 121 |
640*285*515 |
0.0940 |
5 |
11.65 |
|
| M7-A 232 |
460*150*440 |
0.0304 |
1 |
4.05 |
|
| M7-A 242 |
525*150*470 |
0.0371 |
1 |
4.75 |
|
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no additional charge.
Attention Points
1. When the bottom box is embedded with concrete and poured on site, the bottom box needs to be supported up and down, left and right to prevent the bottom box from deformation.
2. During the installation of the upper wall of the bottom box, it is forbidden to block the threaded hole on the right plate with cement mortar.
3. The maximum bearing torque of the grounding screw on the bottom box is 20n. m.
4. It is recommended to install the support panel after the wall is puttying.
