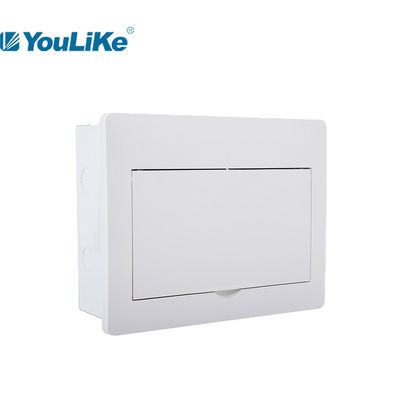

IP40 Wall Mount Enclosure Electrical Power Distribution Box Havells 42 Way MCB Box Price
Product Specification
1. Box to be powder coated steel, 1.0mm for 1rows, 1.2mm for 2rows.
2. Cover frame to be 1.2mm powder coated steel material.
3. Door to be 1.2mm powder coated steel.
4. All plastic parts are without specific flame retardant and qualified to pass incandescent wire test at 650℃.
5. Pastic can be customized to flame retardant (grade V1~V0 depends on material choosed).
6. The protection level reaches IP40.
Product Advantage
1. Select the copper bar with 60% content, which can not crack and slide the wire continuously, and the conductivity is smooth Add line cards to better standardize wiring.
2. The grounding screw is made of stainless steel, which is safe and reliable.
3. All panels are made of brand-new materials, durable and beautiful.
4. The new hinge structure makes users safer.
5. The box mouth adopts double bending design to facilitate cleaning and protect the safety of devices.
Attention Points
1. When the bottom box is embedded with concrete and poured on site, the bottom box needs to be supported up and down, left and right to prevent the bottom box from deformation.
2. During the installation of the upper wall of the bottom box, it is forbidden to block the threaded hole on the right plate with cement mortar.
3. The maximum bearing torque of the grounding screw on the bottom box is 20n. m
4. It is recommended to install the support panel after the wall is puttying.
Specifications of BL series, Flush
| Model |
Way |
Cover size |
Box size |
Terminals
|
Knockouts |
| L*H*T (mm) |
L*W*D*T(mm) |
size(mm) |
PE |
N |
one side qty |
| BLP-A 110 |
10way |
268*210*17.5(26) |
246*192*80*0.8 |
6*10.4 |
6 |
5 |
5 |
| BLP-A 113 |
13way |
322*210*17.5(26) |
300*192*80*0.8 |
6*10.4 |
6 |
5 |
6 |
| BLP-A 116 |
16way |
376*210*17.5(26) |
354*192*80*0.8 |
6*10.4 |
8 |
7 |
7 |
| BLP-A 118 |
18way |
412*210*17.5(26) |
390*192*80*0.8 |
6*10.4 |
11 |
10 |
8 |
| BLP-A 121 |
21way |
466*210*17.5(26) |
444*192*80*0.8 |
6*10.4 |
11 |
10 |
10 |
| BLP-A 124 |
24way |
520*250*17.5(26.5) |
498*230*90*1.0 |
6*10.4 |
11 |
10 |
8 |
| BLP-A 226 |
26way |
322*405*17.5(28.3) |
300*380*90*1.0 |
6*10.4 |
13 |
12 |
6 |
| BLP-A 232 |
32way |
375*405*17.5(28.3) |
354*380*90*1.0 |
6*10.4 |
13 |
12 |
7 |
| BLP-A 242 |
42way |
466*405*17.5(28.3) |
444*380*90*1.0 |
6*10.4 |
18 |
15 |
10 |

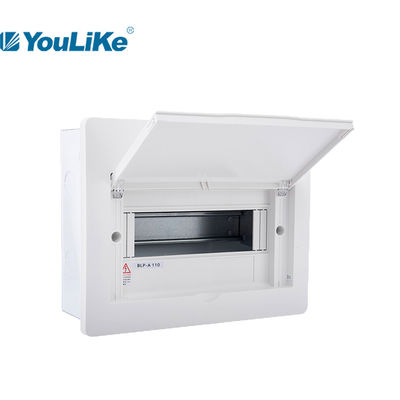

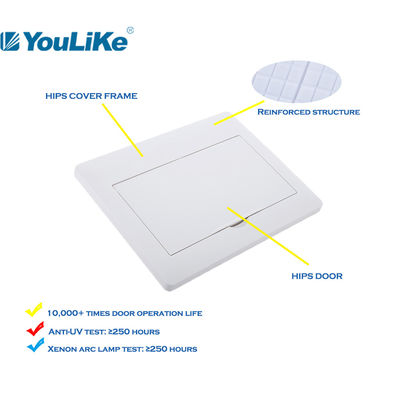

Product Details Demonstration
Packing
| Model |
Carton size |
Volume/ctn |
Pcs/ctn |
Calculated weight(kgs/ctn) |
| mm |
m³ |
net weight |
gross weight |
| BLP-A 110 |
525*290*455 |
0.0693 |
10 |
14.66 |
|
| BLP-A 113 |
525*345*455 |
0.0825 |
10 |
17.10 |
|
| BLP-A 116 |
525*235*405 |
0.0450 |
5 |
9.25 |
|
| BLP-A 118 |
525*235*440 |
0.0543 |
5 |
10.20 |
|
| BLP-A 121 |
525*235*495 |
0.0611 |
5 |
11.65 |
|
| BLP-A 124 |
545*240*280 |
0.0367 |
2 |
6.70 |
|
| BLP-A 226 |
460*135*385 |
0.0239 |
1 |
3.60 |
|
| BLP-A 232 |
455*160*425 |
0.0310 |
1 |
4.05 |
|
| BLP-A 242 |
510*160*460 |
0.0376 |
1 |
4.75 |
|
Neutral carton packing Our style carton
Remarks: #1. Both customized color box or neutral box is available.
#2. In case customized color box is required, there is a MOQ≥1000pcs/each size.
#3. Customized logo print on product is available with no additional charge.
Customer Service
1. OEM/ODM (customized logo/ carton packing/ box depth/ plate thickness)
2. Order arrangement
* ≤15 days stable delivery
* specific MOQ
* multiple payment terms
* order status update
3. Additional service
* 7X24 respondence service
* on site service
* quality discrepancy handle
* accessories coordination
